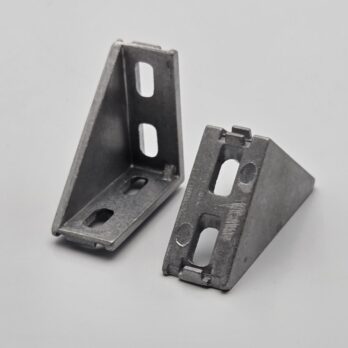

Angle 40mm x 40mm Aluminium Die-Cast – Series 5 Profile Connector
£2.75 exc VAT
Download Dimensions as PDF
Download Step File
Note: If you experience download issues, right click the link and select "Save link as".
- Durable robust design
- Easy customisation
- High quality materials
- Versatile profiles & components
The Angle 40mm x 40mm Aluminium Die-Cast – Series 5 is an essential connector element for anyone working with modular aluminium profiles. Designed specifically for Series 5 aluminium extrusions, this high-quality die-cast angle ensures accurate and robust 90-degree connections, making it ideal for lightweight structural applications. Whether you’re constructing sensor supports, small frames, enclosures, or delicate machinery setups, this aluminium angle offers unmatched reliability and precision.
High-Quality Die-Cast Aluminium Construction
Crafted from premium die-cast aluminium, the Angle 40mm x 40mm Aluminium Die-Cast – Series 5 delivers superior strength while maintaining a lightweight design. The aluminium material provides excellent corrosion resistance, durability, and rigidity, ensuring your assemblies stay secure and stable over time. Unlike plastic or lower-quality connectors, this die-cast angle guarantees consistent performance and a professional finish for all your projects.
Designed for Series 5 Aluminium Profiles
The Angle 40mm x 40mm Aluminium Die-Cast – Series 5 is engineered specifically for Series 5 aluminium profiles, which are based on a 20mm core dimension and a 5mm slot width. These profiles are widely used in small-scale applications where lightweight, modular construction is required. The 5mm slot allows for the use of M5 slot nuts, providing a secure fastening method without compromising the integrity of your frame. This makes the Angle 40mm x 40mm Aluminium Die-Cast – Series 5 the perfect companion for precise, small-scale assemblies.
Versatile Applications
This angle connector element is highly versatile and can be used in a variety of applications:
- Sensor Supports: Construct stable and precise mounts for sensors, cameras, or monitoring devices.
- Small Doors and Panels: Assemble compact doors and protective panels with secure corner joints.
- Modular Frames: Build frames for workstations, laboratory equipment, and display units.
- Enclosures: Create lightweight and durable enclosures for electronics or mechanical components.
Because it’s part of the Series 5 range, the Angle 40mm x 40mm Aluminium Die-Cast – Series 5 integrates seamlessly with other connectors, hinges, handles, and ancillary parts, offering complete flexibility for your project design.
Easy Assembly with Maximum Stability
The die-cast angle design ensures that each connection is precise and secure. Using standard M5 slot nuts, the Angle 40mm x 40mm Aluminium Die-Cast – Series 5 allows you to achieve strong corner joints without the need for specialized tools or complex assembly techniques. Its compact 40mm x 40mm size fits neatly within Series 5 profiles, making it a simple yet effective solution for small modular constructions.
Lightweight Yet Robust
Series 5 aluminium profiles are ideal for light-duty applications, and the Angle 40mm x 40mm Aluminium Die-Cast – Series 5 complements this perfectly. Its lightweight die-cast construction ensures that your assemblies remain easy to handle and adjust while maintaining the structural support needed for smaller frames and fixtures. This balance of weight and strength makes it particularly useful in scenarios where easy portability and modular adjustments are essential.
Compatible with Series 5 Ancillary Parts
The Angle 40mm x 40mm Aluminium Die-Cast – Series 5 is part of a broader ecosystem of Series 5 accessories. You can combine this angle with:
- Hinges for movable panels and doors
- Handles for ergonomic operation
- Slot nuts for secure fastening
- Other connectors for more complex structural designs
This compatibility ensures that your modular system can grow or adapt without the need for additional, non-standard components.
Precision Engineering for Reliable Performance
Every Angle 40mm x 40mm Aluminium Die-Cast – Series 5 is manufactured with tight tolerances to guarantee perfect alignment within Series 5 aluminium profiles. This precision ensures that your corners are perfectly square, which is critical for both mechanical stability and aesthetic quality. Whether for laboratory equipment, industrial fixtures, or display assemblies, you can trust that each connector will perform consistently, project after project.
Lightweight Modular Design Advantage
One of the biggest advantages of using the Angle 40mm x 40mm Aluminium Die-Cast – Series 5 is its contribution to a lightweight, modular design. Series 5 profiles are not suitable for heavy-load applications, but their 5mm slot width and M5 thread compatibility make them ideal for small to medium assemblies. The die-cast angle allows you to maximize the strength of these lightweight profiles, ensuring secure joints without adding unnecessary bulk.
Why Choose the Angle 40mm x 40mm Aluminium Die-Cast – Series 5?
- Durable Construction: Premium die-cast aluminium resists corrosion and wear.
- Precise Fit: Engineered for Series 5 profiles, ensuring tight and square connections.
- Easy Installation: Compatible with M5 slot nuts for quick and secure assembly.
- Modular Flexibility: Works seamlessly with Series 5 hinges, handles, and connectors.
- Versatile Applications: Ideal for sensor mounts, enclosures, small frames, and doors.
This combination of precision, durability, and compatibility makes the Angle 40mm x 40mm Aluminium Die-Cast – Series 5 an essential component for anyone building with Series 5 aluminium profiles.
Part of the Series 5 range of aluminium profile & components
Being part of the Series 5 5mm t-slot profile range, this product is compatible with a wide range of profiles, cable management, castors, feet and base plates, connecting blocks, cover & reduction profiles, door elements, end caps, glazing accessories, handles, hinges, levelling pads, slot nuts, and tools. The versatile range of profiles and components allow you to build a variety of custom and bespoke projects for private or commercial use.
Perfect for DIY and Professional Projects
Whether you’re a hobbyist building custom fixtures or a professional engineer assembling lightweight machinery, the Angle 40mm x 40mm Aluminium Die-Cast – Series 5 offers the reliability and versatility you need. Its lightweight construction and precise engineering make it ideal for iterative designs and modular setups where adjustments or expansions may be required.
Easy Maintenance and Longevity
Die-cast aluminium is inherently resistant to corrosion and wear, making the Angle 40mm x 40mm Aluminium Die-Cast – Series 5 low-maintenance and long-lasting. Unlike cheaper alternatives, this connector element maintains its structural integrity over time, ensuring that your assemblies remain stable and reliable for years to come.
Please make sure this is the correct series part to match the profile series you are purchasing or using. Thank you.
