Series 6

Series 6 Aluminium Profiles – 30mm Modular T-Slot Extrusion System

Series 6 aluminium profiles are a versatile and robust modular framing solution, designed around 30mm core dimensions with a 6mm T-slot, making them ideal for a wide range of medium-to-large structural applications. As part of a modern aluminium extrusion system, Series 6 profiles offer an excellent balance between strength, flexibility, and ease of assembly, making them a popular choice for industrial, commercial, and bespoke fabrication projects.

Engineered for performance and adaptability, Series 6 T-slot aluminium extrusions are commonly used in applications such as furniture frames, table and workbench structures, machine guards, enclosures, display systems, and light industrial frameworks. They provide significantly greater rigidity than smaller profile systems while remaining lightweight and easy to reconfigure.

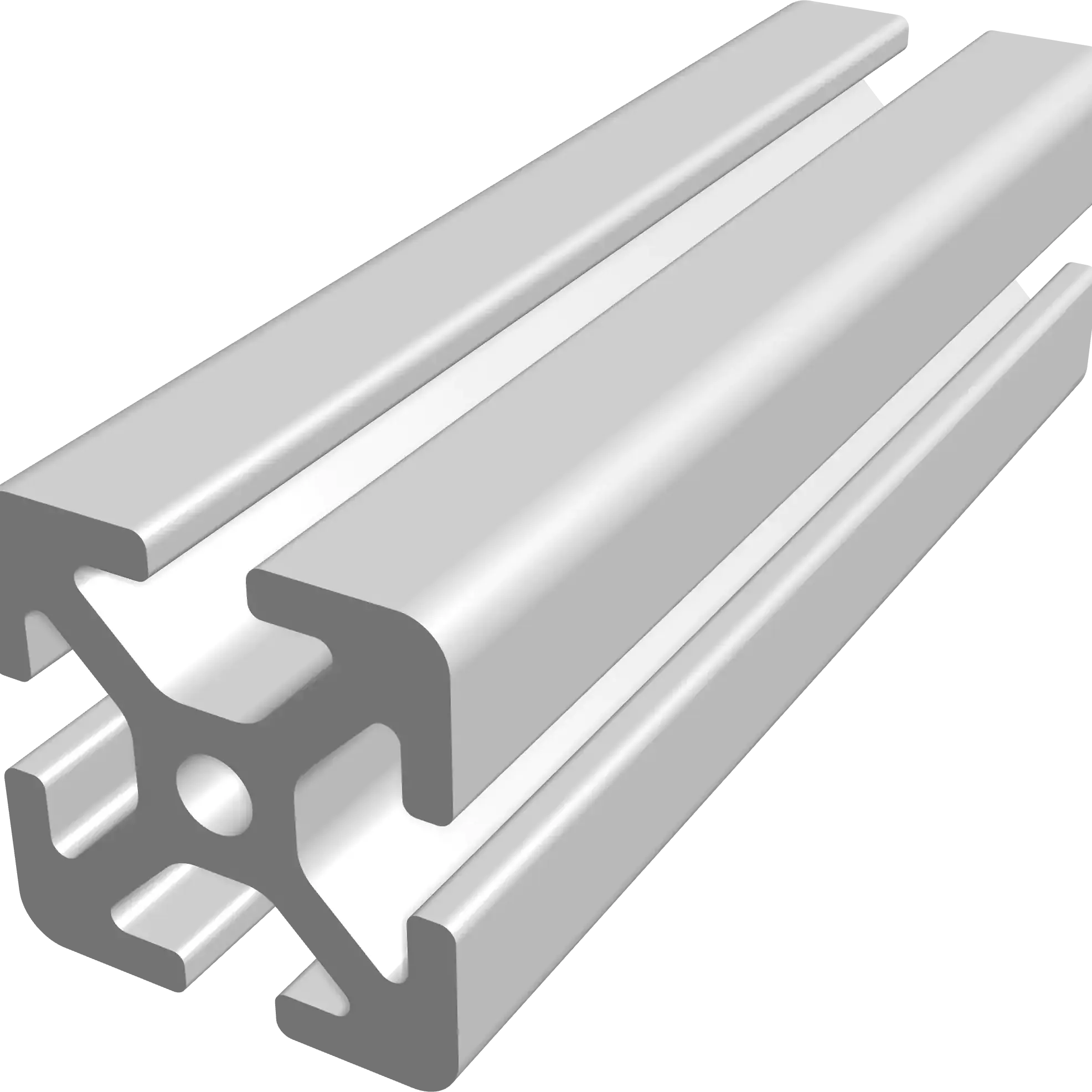

30mm Aluminium Extrusion with 6mm Slot Design

At the core of the Series 6 system is its 30mm aluminium profile format, paired with a 6mm slot width that supports a maximum slot nut thread size of M6. This slot geometry allows for secure fastening while maintaining a clean, modular appearance. The 6mm slot aluminium profile design ensures compatibility with a comprehensive range of standard accessories, making it simple to build, expand, or modify structures as project requirements evolve.

Because the aluminium extrusion slot is 6mm, all fixings, connectors, and fasteners within the Series 6 system are optimised for M6 threaded components, ensuring consistent strength and load distribution across the framework. This makes Series 6 aluminium profiles ideal for applications where stability and repeatable accuracy are essential.

Stronger Than Series 5 Aluminium Extrusions

Compared to Series 5 aluminium extrusions, Series 6 profiles offer increased strength and rigidity, making them better suited to more demanding environments. The larger cross-section and reinforced profile design allow Series 6 to handle higher loads and resist torsional forces more effectively.

This added strength makes Series 6 aluminium extrusion systems particularly suitable for:

• Furniture and office fit-out frameworks
• Tabletop and workstation frames
• Protective enclosures and guarding
• Modular shelving and racking systems
• Exhibition stands and display structures

While Series 6 profiles are not intended for extreme heavy-duty industrial use, they perform exceptionally well in rigorous light-to-medium duty applications where durability and flexibility are equally important.

Extensive Range of Series 6 Accessories and Components

One of the key advantages of choosing a Series 6 modular aluminium framing system is access to an extensive range of compatible ancillary parts. The system is supported by a comprehensive ecosystem of components that allow fast, secure, and professional assembly without welding or specialist tools.

Available Series 6 accessories include:

• Slot nuts and hammer nuts (M6)

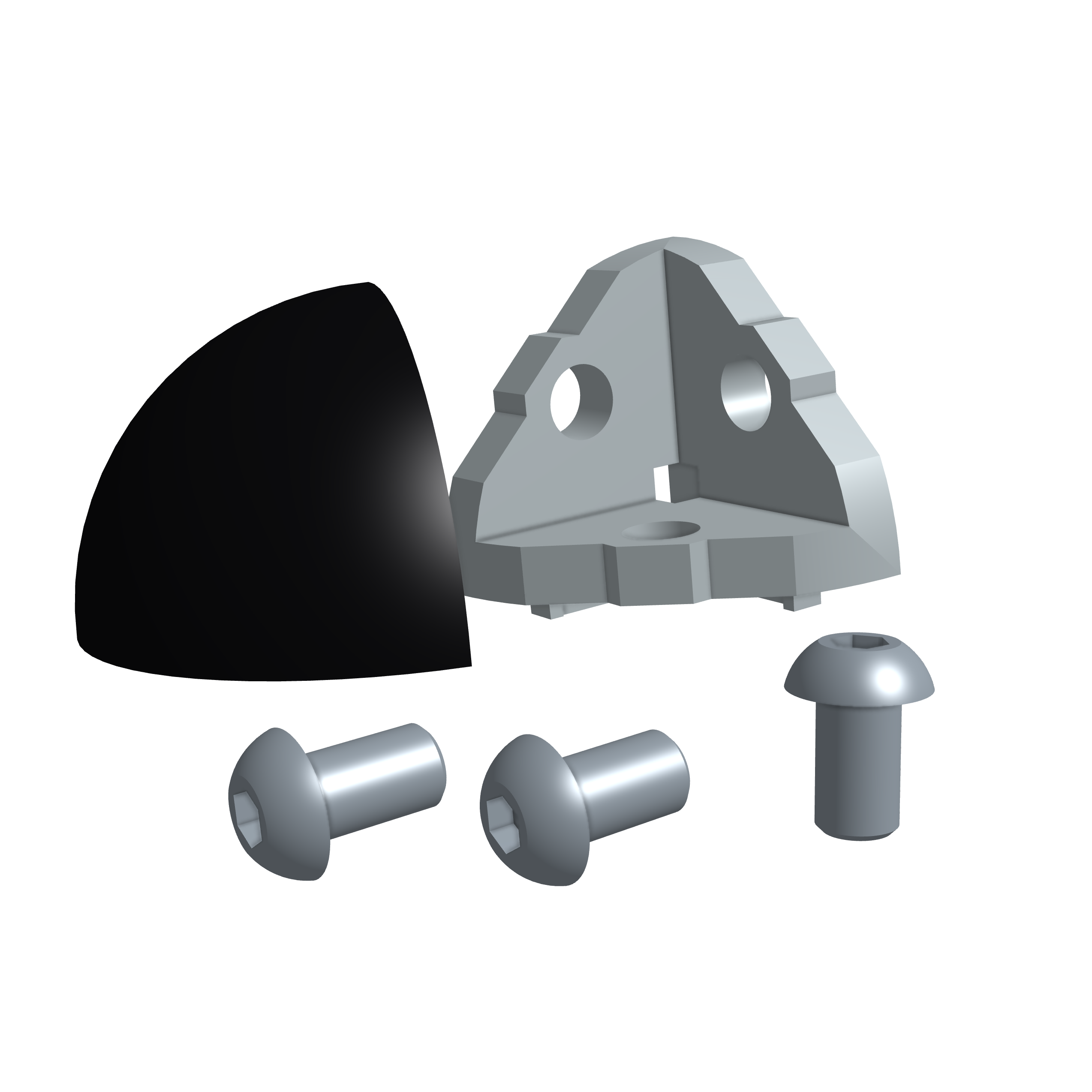

• Internal and external connectors

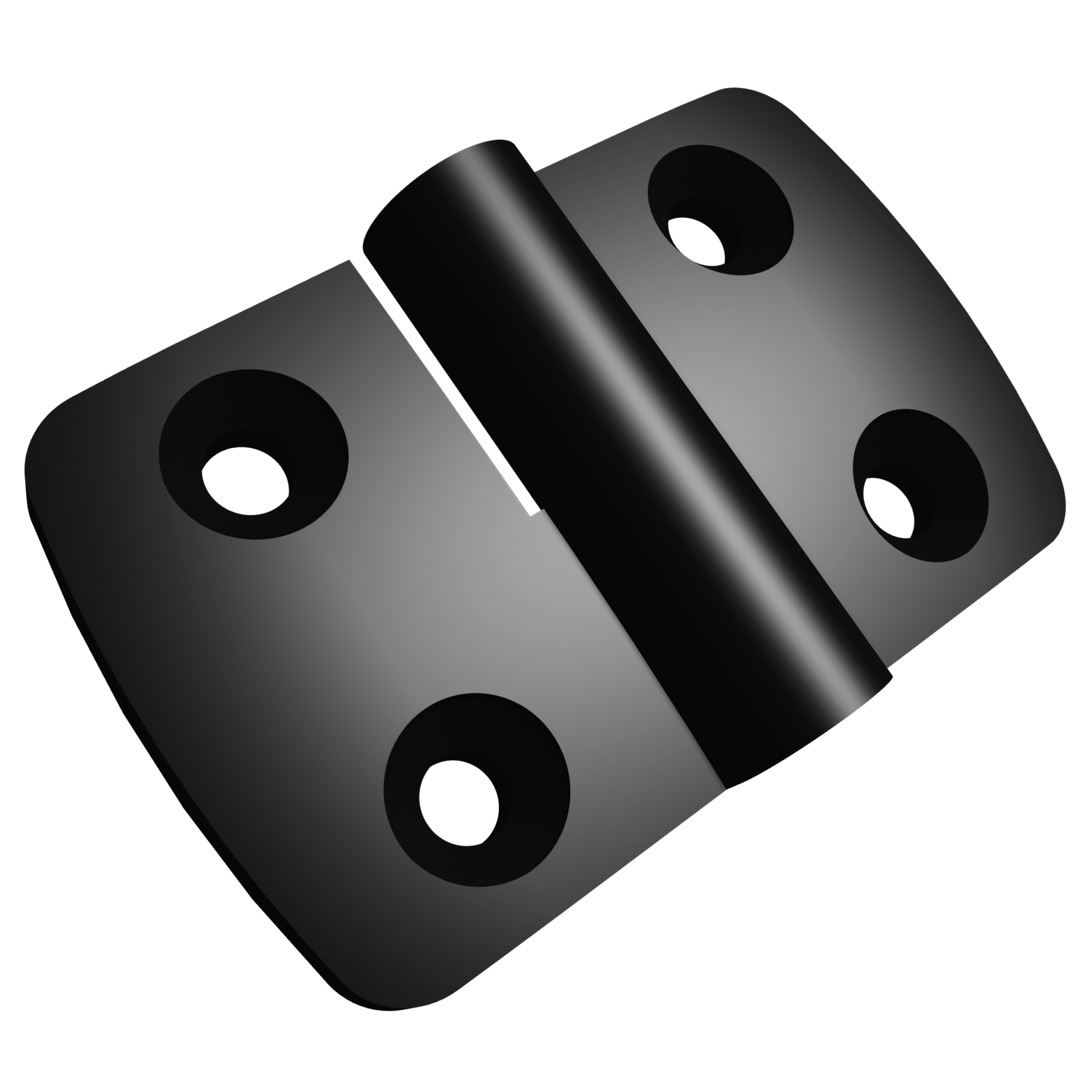

• Hinges for doors and access panels
• Handles and grips
• Angle brackets and joining plates
• End caps and covers

These components enable the creation of complex frames, hinged doors, removable panels, and adjustable structures, all while maintaining the clean, industrial aesthetic associated with aluminium extrusion systems.

Flat Finish and Expanded Profile Options

The Series 6 range continues to evolve, with a growing variety of profile types, including new flat finish aluminium profiles. These flat-sided profiles are ideal where a smooth external surface is required, such as visible furniture elements, enclosures, or customer-facing installations.

By offering both standard T-slot profiles and flat finish variants, Series 6 aluminium extrusions provide designers and fabricators with greater freedom to balance functionality and appearance within the same modular system.

Easy Assembly and Modular Flexibility

Like all high-quality T-slot aluminium profile systems, Series 6 extrusions are designed for quick assembly and reconfiguration. Frames can be built, adjusted, or dismantled without cutting or welding, making them ideal for projects that may need future expansion or modification.

This modular approach reduces build time, minimises waste, and lowers overall project costs, while still delivering a professional, durable end result.

When to Choose Series 8 Aluminium Profiles Instead

While Series 6 aluminium profiles are strong and versatile, heavy-duty or high-load applications may require the additional strength of Series 8 aluminium extrusions. If your project involves large spans, heavy machinery, or high dynamic loads, Series 8 profiles are recommended.

However, for most furniture, enclosure, workstation, and general framework applications, Series 6 aluminium extrusion systems offer an excellent balance of strength, cost-effectiveness, and modular performance.

A Reliable Aluminium Profile System for Professional Builds

Whether you are designing modular furniture, constructing table frames, or building enclosures, Series 6 aluminium profiles provide a dependable and scalable solution. With their 30mm profile design, 6mm slot compatibility, and wide range of accessories, they are an ideal choice for professional fabricators, engineers, and designers seeking a reliable aluminium extrusion system.

Explore the full range of Series 6 aluminium profiles and accessories to build strong, adaptable structures with confidence.
