Angle Kit 40mm x 40mm – Series 5 Aluminium Profile Connector
£5.50 exc VAT

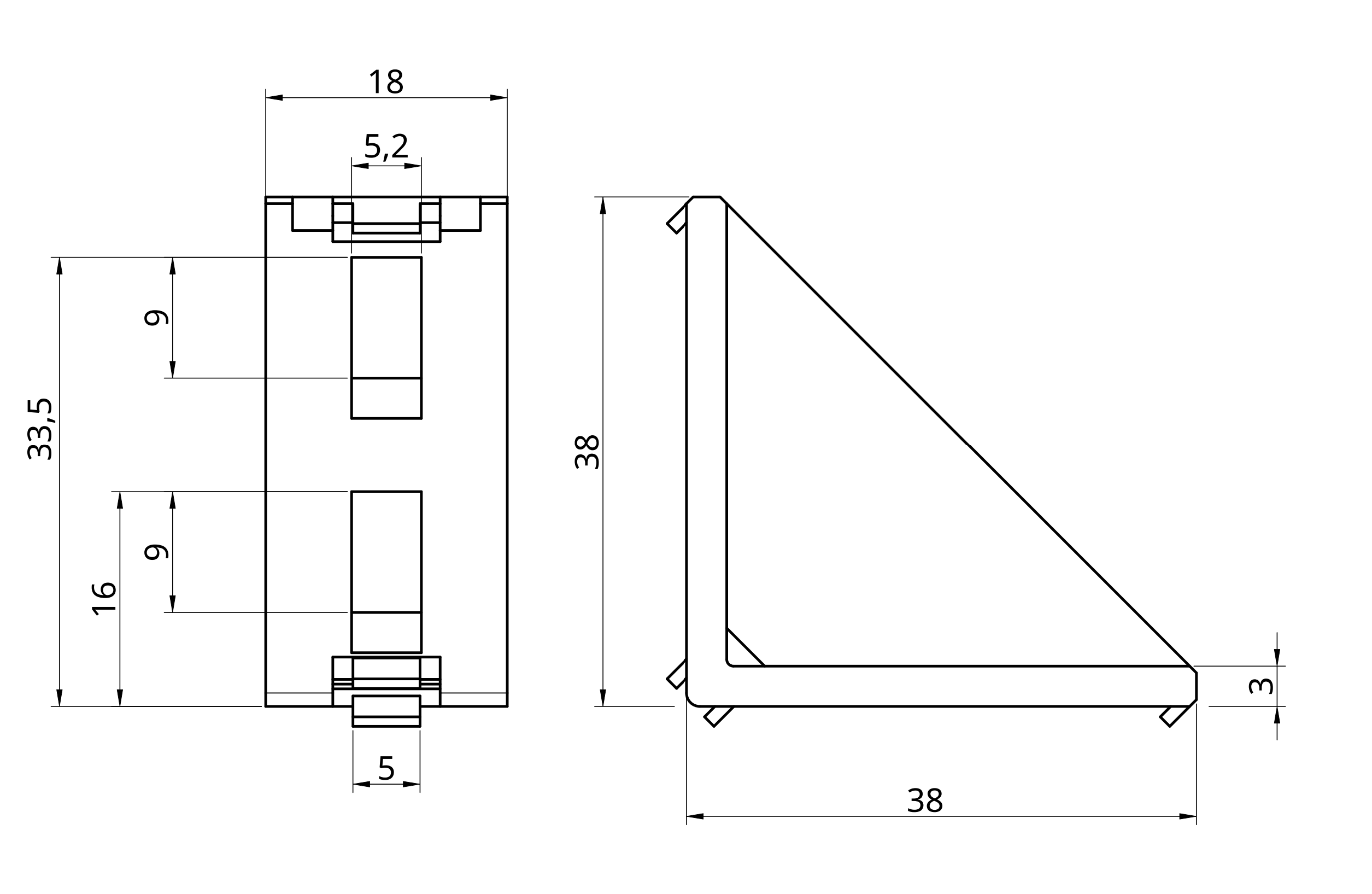

Download Dimensions as PDF
Download Step File
Note: If you experience download issues, right click the link and select "Save link as".
- Durable robust design
- Easy customisation
- High quality materials
- Versatile profiles & components
Angle Kit 40mm x 40mm – Series 5 Aluminium Profile Connector
When working with modular aluminium profile systems, precision, durability, and ease of assembly are essential. The Angle Kit 40mm x 40mm – Series 5 is a high-quality connector designed specifically for Series 5 aluminium profiles. This kit ensures your structures remain strong, stable, and perfectly aligned, making it an ideal choice for workstations, enclosures, shelving systems, and custom frames.
What’s Included in the Angle Kit 40mm x 40mm – Series 5

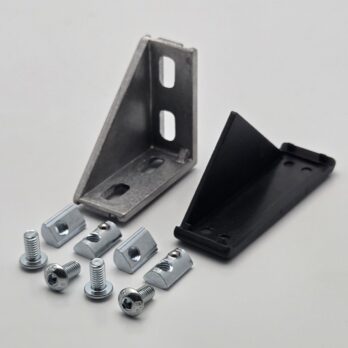

Each Angle Kit 40mm x 40mm – Series 5 contains all components needed for a complete and reliable profile connection:

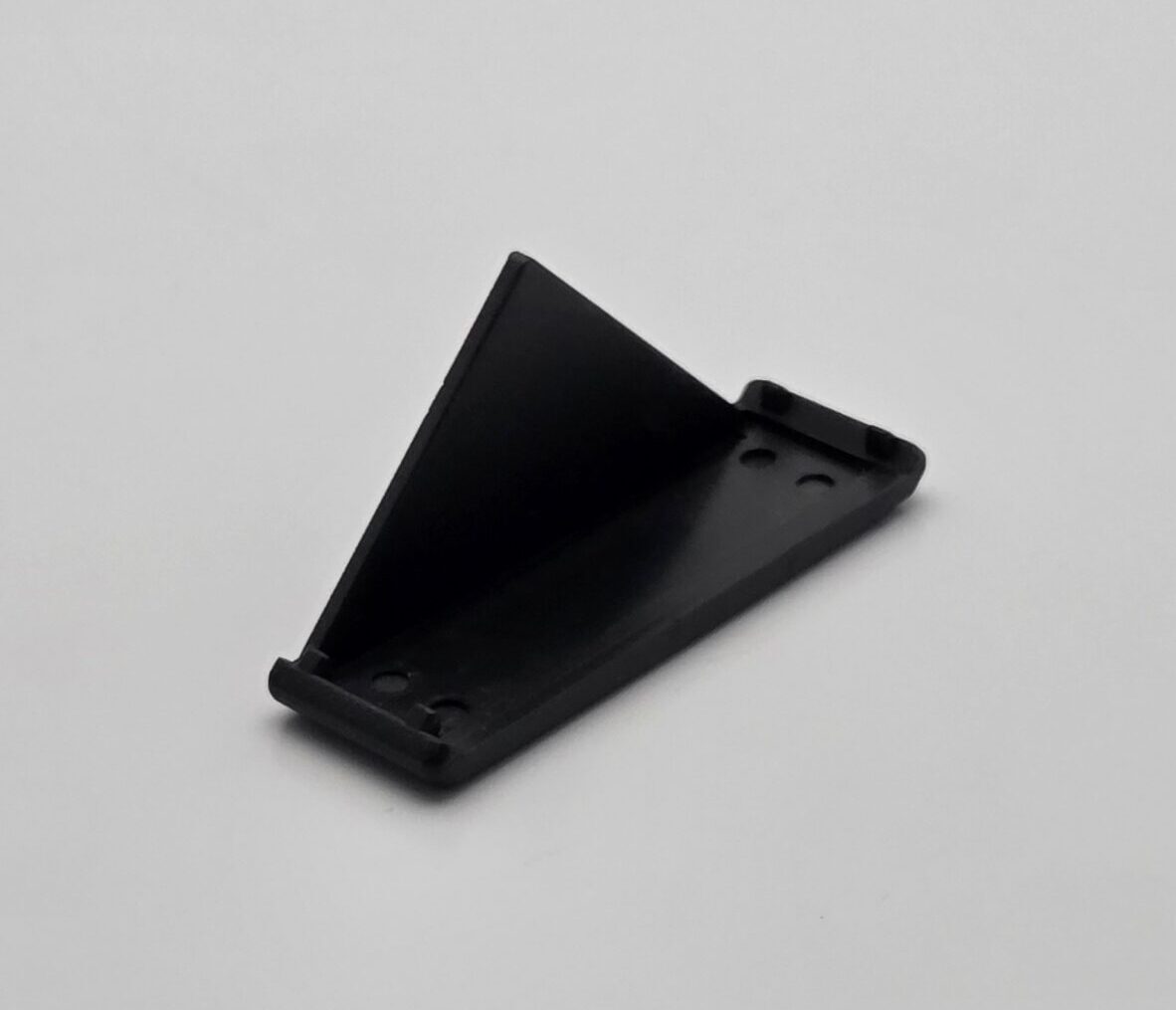

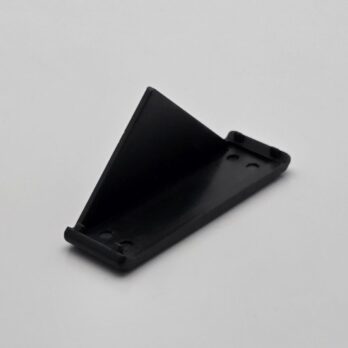

- 1x Angle Connector (12.05.0369) and Cover Cap – Protects exposed ends of the aluminium profile for a clean, professional finish.
- 4x M4x8mm Socket Button Screws – High-quality fasteners that securely join the aluminium profiles.
- 4x M4 Slot Nuts (11.05.0086) – Engineered to fit perfectly within the 6mm slots of Series 5 profiles, ensuring maximum stability.
By including all necessary hardware, this kit eliminates the need for additional parts, saving time and guaranteeing a strong, long-lasting connection.
Why Choose the Angle Kit 40mm x 40mm – Series 5?
The Angle Kit 40mm x 40mm – Series 5 stands out for its combination of precision engineering, versatility, and ease of use:
Superior Strength and Durability
Constructed from robust materials, this angle connector is designed to withstand heavy loads and maintain structural integrity over time. Whether you’re building shelving, enclosures, or workstations, this kit ensures your assembly is strong and reliable.
Easy Assembly
With included M4 socket screws and slot nuts, installation is straightforward. The Angle Kit 40mm x 40mm – Series 5 allows even complex structures to be assembled quickly without specialized tools, making it perfect for DIY projects, professional workshops, or industrial applications.
Clean and Professional Finish

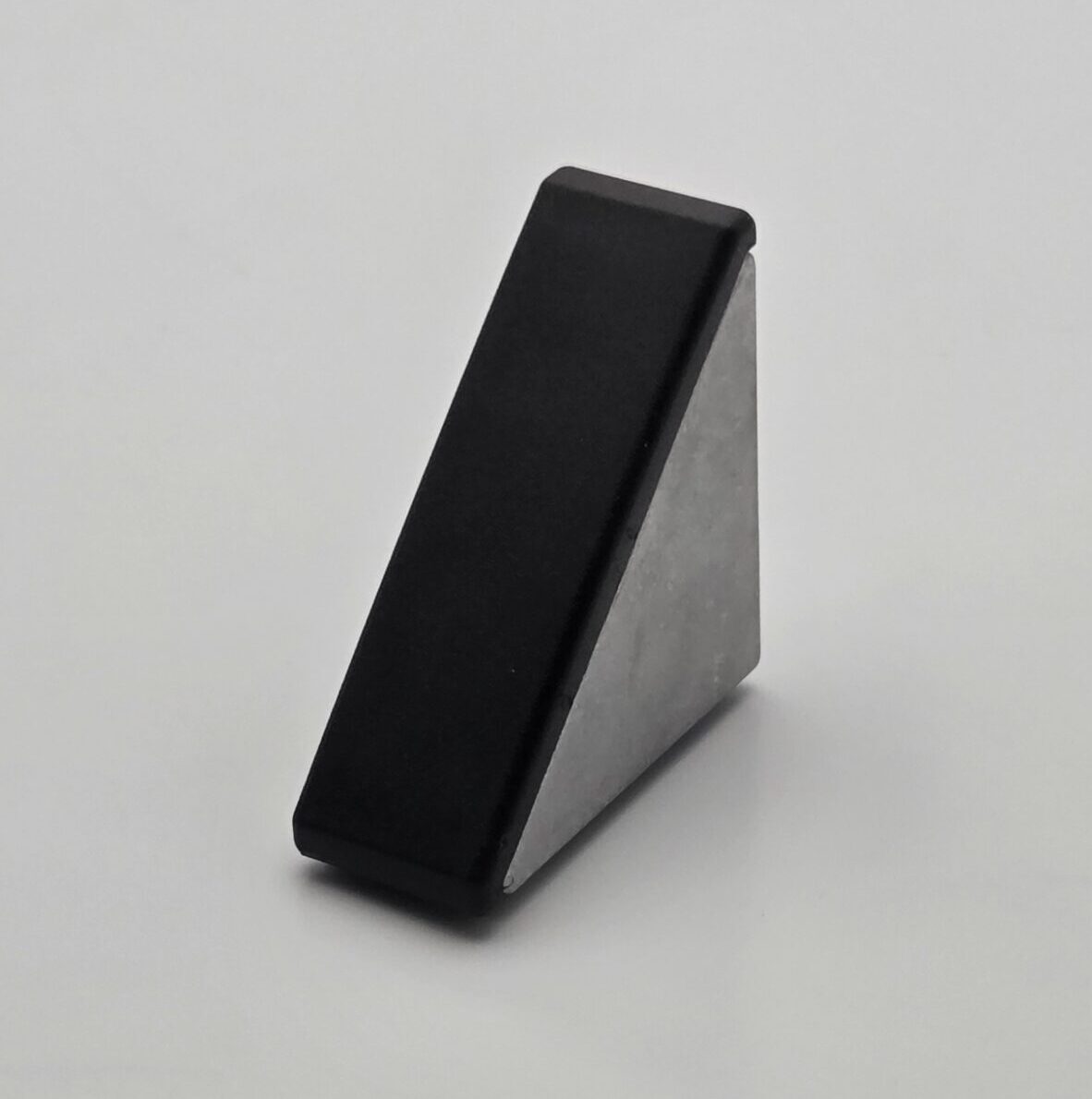

The included cover cap hides the joint and provides a sleek, finished appearance. The Angle Kit 40mm x 40mm – Series 5 ensures that your aluminium frames not only perform well but also look polished and professional.
Applications for the Angle Kit 40mm x 40mm – Series 5
The versatility of the Angle Kit 40mm x 40mm – Series 5 makes it suitable for a wide range of applications:
- Workstations – Create ergonomic, durable work surfaces with reinforced corners.
- Shelving and Storage – Securely join profiles to build customized shelving units.
- Enclosures and Frames – Perfect for machine guards, protective barriers, or display frames.
- Custom Furniture – Design bespoke tables, benches, or modular office furniture.
This connector is ideal wherever Series 5 aluminium profiles are used, providing a reliable, professional-grade solution for all your modular construction needs.
Why Series 5 Aluminium Profiles?
Series 5 aluminium profiles are widely recognized for their strength, precision, and adaptability. With a 40mm x 40mm core and a 6mm slot, Series 5 profiles allow for flexible and stable assembly. Using the Angle Kit 40mm x 40mm – Series 5 ensures that all joints are perfectly aligned and capable of supporting heavy loads. Combining this kit with Series 5 profiles maximizes the performance and longevity of your structures.
Installation Tips for the Angle Kit 40mm x 40mm – Series 5
To achieve the best results with your Angle Kit 40mm x 40mm – Series 5, follow these simple steps:
- Prepare the Profile Ends – Ensure the aluminium profiles are cut square and clean.
- Insert Slot Nuts – Place M4 slot nuts into the profile slots, aligning them with the screw holes.
- Attach the Connector – Position the angle kit and secure it with M4x8mm socket screws.
- Add the Cover Cap – Snap the cover cap into place for a polished finish.
Following these steps guarantees a secure and professional installation every time.
Part of the Series 5 range of aluminium profile & components
Being part of the Series 5 5mm t-slot profile range, this product is compatible with a wide range of profiles, cable management, castors, feet and base plates, connecting blocks, cover & reduction profiles, door elements, end caps, glazing accessories, handles, hinges, levelling pads, slot nuts, and tools. The versatile range of profiles and components allow you to build a variety of custom and bespoke projects for private or commercial use.
Advantages of Buying from Valuframe
Purchasing the Angle Kit 40mm x 40mm – Series 5 from Valuframe ensures quality, reliability, and convenience:
- Top-Quality Materials – Manufactured to precise standards for long-lasting performance.
- Complete Kits – Includes all necessary hardware to save time and effort.
- Trusted Supplier – Valuframe is a leading provider of aluminium profiles and accessories online.
- Fast Delivery – Receive your kit quickly and start building without delay.
Whether for industrial, commercial, or DIY applications, Valuframe delivers high-quality aluminium profile solutions to meet your needs.
The Angle Kit 40mm x 40mm – Series 5 is an essential accessory for anyone using Series 5 aluminium profiles. Its robust construction, ease of assembly, and professional finish make it the ideal choice for workstations, frames, shelving, and custom projects. With everything included in one convenient kit and the reliability of Valuframe’s products, this connector ensures your structures are secure, durable, and built to last.
Enhance your modular builds today with the Angle Kit 40mm x 40mm – Series 5 and experience the combination of quality, convenience, and performance that only Valuframe provides
Please make sure this is the correct series part to match the profile series you are purchasing or using. Thank you.
