Connecting Plate 20mm Kit Silver – Series 5 Aluminium Profile Connector
£3.75 exc VAT
SKU 13.05.0429 Category Series 5 Connector Element
Note: If you experience download issues, right click the link and select "Save link as".
- Durable robust design
- Easy customisation
- High quality materials
- Versatile profiles & components
Secure Your Series 5 Aluminium Profiles with the Connecting Plate 20mm Kit Silver
When it comes to building durable, modular structures with aluminium profiles, having the right connectors is essential. The Connecting Plate 20mm Kit Silver – Series 5 is designed to offer a strong, reliable connection for your Series 5 aluminium profiles. Engineered for precision and ease of installation, this kit ensures your assemblies are both sturdy and visually appealing.
Complete Kit for Effortless Assembly

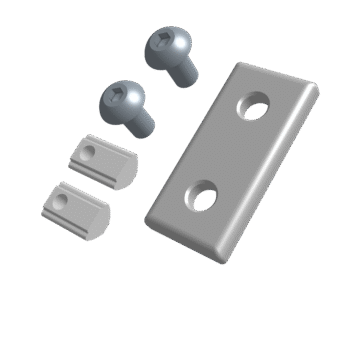

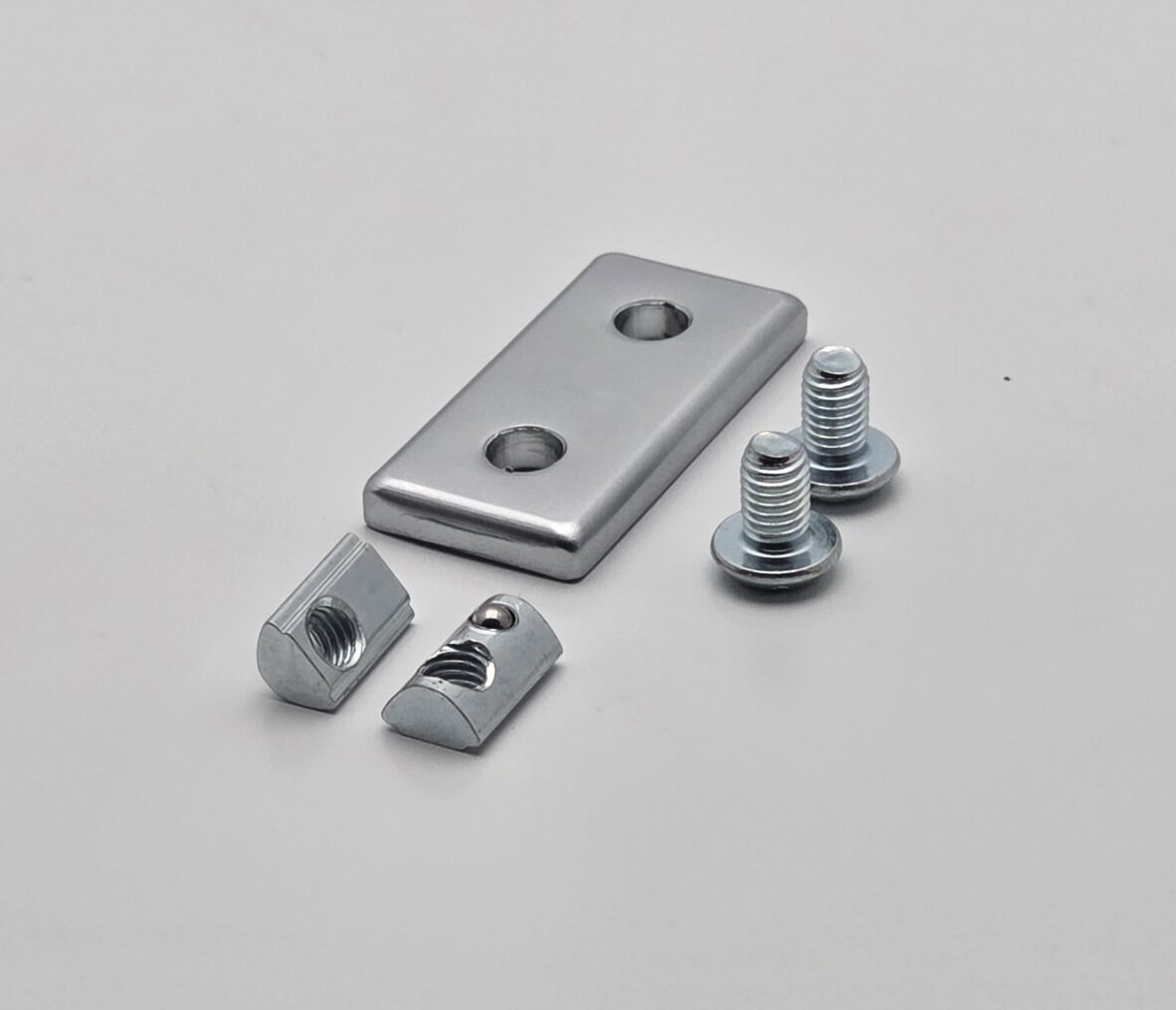

The Connecting Plate 20mm Kit Silver – Series 5 includes everything you need for a professional, seamless connection:
- 1x Connecting Plate – Made from high-quality aluminium, providing corrosion resistance and a sleek silver finish.
- 2x M5x10mm Socket Button Head Screws – Designed for a secure fit with standard Series 5 slot nuts.
- 2x Slot Nuts (11.05.0086) – Easy to install and compatible with the included screws for fast assembly.
This comprehensive kit eliminates the need to source separate components, making it ideal for both DIY enthusiasts and professional engineers working with modular systems.
Perfect Fit for Series 5 Aluminium Profiles
The Connecting Plate 20mm Kit Silver – Series 5 is specifically engineered for Series 5 aluminium profiles, ensuring precise alignment and optimal load distribution. Whether you are creating workstations, shelving units, machine guards, or custom frames, this connector guarantees a secure hold that meets high industry standards.
Advantages of Choosing the Connecting Plate 20mm Kit Silver
- Durable and Reliable – Crafted from premium aluminium, the connecting plate resists corrosion and maintains structural integrity over time.
- Easy Installation – The kit includes everything you need: plate, screws, and slot nuts. Simply insert the slot nuts into the profile grooves, attach the plate, and secure the screws.
- Versatile Applications – Ideal for modular furniture, automation equipment, robotics, and any Series 5 aluminium profile framework.
- Clean, Professional Look – The silver anodized finish not only protects the aluminium but also adds a polished, professional appearance to your projects.
- Optimized for Load Distribution – The design ensures an even distribution of stress across your profiles, enhancing overall stability.
How to Use the Connecting Plate 20mm Kit Silver – Series 5
- Prepare the Profiles – Cut your Series 5 aluminium profiles to the required lengths for your assembly.
- Insert the Slot Nuts – Slide the included slot nuts into the profile channels where the connection is required.
- Position the Connecting Plate – Align the connecting plate with the slot nuts on the profiles.
- Secure with Screws – Using the M5x10mm socket button head screws, fasten the plate securely. Ensure all screws are tightened evenly for maximum stability.
This straightforward process reduces assembly time and ensures a robust, long-lasting connection.
Ideal for Professionals and DIY Enthusiasts
The Connecting Plate 20mm Kit Silver – Series 5 is perfect for engineers, fabricators, and DIY builders alike. Its compatibility with the widely-used Series 5 aluminium profiles makes it a staple component for modular construction projects. Whether you are building industrial frames or bespoke furniture, this kit provides a dependable solution for all your connection needs.
Why Valuframe’s Connecting Plate Kit Stands Out
At Valuframe, we focus on providing high-quality aluminium profile solutions that are both practical and durable. Our Connecting Plate 20mm Kit Silver – Series 5 is manufactured to strict quality standards, ensuring precision engineering and reliability. By choosing this kit, you invest in a component that simplifies your assembly process while delivering professional-grade results.
- Quality Tested – Each kit is carefully inspected to meet stringent quality control standards.
- Consistent Performance – Designed for repeated use and long-term durability.
- Seamless Integration – Works flawlessly with other Series 5 profile components for modular flexibility.
Applications of the Connecting Plate 20mm Kit Silver
The versatility of this kit allows it to be used in a wide range of applications:
- Modular workstations and benches
- Shelving and storage systems
- Industrial automation frameworks
- Robotics and automation equipment
- Laboratory and cleanroom structures
- Custom furniture and bespoke builds
No matter your project, the Connecting Plate 20mm Kit Silver – Series 5 ensures your aluminium profiles are connected securely and professionally.
Why You Should Choose This Connecting Plate Kit
Choosing the right connector can make all the difference in the durability and reliability of your structure. The Connecting Plate 20mm Kit Silver – Series 5 offers a combination of high-quality materials, precise engineering, and user-friendly assembly. By incorporating this kit into your build, you benefit from:
- Strength and stability
- Fast, easy assembly
- A professional finish
- Long-lasting performance
For anyone using Series 5 aluminium profiles, this kit is an essential component to achieve reliable and polished results.
Part of the Series 5 range of aluminium profile & components
Being part of the Series 5 5mm t-slot profile range, this product is compatible with a wide range of profiles, cable management, castors, feet and base plates, connecting blocks, cover & reduction profiles, door elements, end caps, glazing accessories, handles, hinges, levelling pads, slot nuts, and tools. The versatile range of profiles and components allow you to build a variety of custom and bespoke projects for private or commercial use.
The Connecting Plate 20mm Kit Silver – Series 5 is a must-have for anyone working with Series 5 aluminium profiles. Its comprehensive contents, durable construction, and ease of use make it the ideal choice for both professional and DIY applications. Whether building industrial frameworks, custom furniture, or modular structures, this connecting plate kit ensures your projects are secure, functional, and visually appealing.
Invest in quality, efficiency, and precision with the Connecting Plate 20mm Kit Silver – Series 5 – the smart choice for aluminium profile connections.
Please make sure this is the correct series part to match the profile series you are purchasing or using. Thank you.
