Connector Plate Kit 40mm Steel BZP – Series 8 Aluminium Profile Element

The Connector Plate Kit 40mm Steel BZP – Series 8 is an essential component for building robust and versatile aluminium profile structures. Designed specifically for Series 8 aluminium profiles, this kit ensures a secure and precise connection between elements, providing both strength and stability for industrial, workshop, and custom-built applications. With its zinc-plated (BZP) steel construction, it combines durability with corrosion resistance, making it suitable for long-term use in demanding environments.

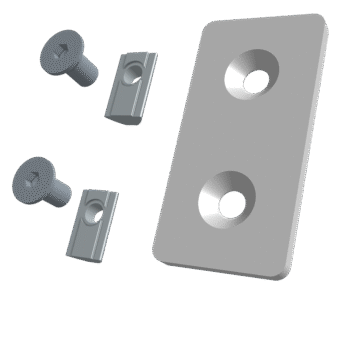

This Connector Plate Kit 40mm Steel BZP – Series 8 includes all the necessary hardware for quick assembly: 2 x M8x12 socket countersunk bolts (BZP) and 2 x M8 slot nuts (11.08.0110). The kit is designed to simplify your construction process while maintaining the highest standards of quality.

Why Choose the Connector Plate Kit 40mm Steel BZP – Series 8?

When working with Series 8 aluminium profiles, choosing the right connector is crucial for achieving a strong and reliable structure. The Connector Plate Kit 40mm Steel BZP – Series 8 offers several advantages:

• Durable Steel Construction: The high-quality steel material ensures excellent mechanical strength, allowing your assemblies to withstand heavy loads.
• Corrosion Resistance: Zinc-plated (BZP) coating provides superior resistance to rust and environmental wear.
• Precision Engineering: Each component is manufactured to precise specifications to fit perfectly with Series 8 aluminium profiles, reducing installation errors.
• Complete Kit: Comes with M8x12 socket countersunk bolts and M8 slot nuts, so you have everything you need to assemble your aluminium structures quickly.

Key Features of the Connector Plate Kit 40mm Steel BZP – Series 8

The Connector Plate Kit 40mm Steel BZP – Series 8 is engineered with functionality and versatility in mind. Some of the key features include:

• Compatibility: Perfectly compatible with all Series 8 aluminium profiles, making it a versatile choice for modular framing, workstations, and custom builds.
• High-Quality Hardware: Includes 2 x M8x12 socket countersunk bolts (BZP) and 2 x M8 slot nuts (11.08.0110), designed to provide secure and tight connections.
• Strong Load Capacity: The steel connector plate distributes weight evenly, enhancing the stability of your construction.
• Easy Installation: The design of the connector plate ensures straightforward assembly without the need for special tools or expertise.
• Reusable and Adjustable: Can be reused across multiple projects and allows for slight adjustments during assembly.

Applications for the Connector Plate Kit 40mm Steel BZP – Series 8

The Connector Plate Kit 40mm Steel BZP – Series 8 is ideal for a variety of industrial and DIY applications. It is commonly used in:

• Workstations and Benches: Build custom work surfaces and benches with secure aluminium frame connections.
• Machine Guards and Safety Panels: Construct reliable protective structures around machinery with ease.
• Custom Storage Solutions: Perfect for assembling shelving units, cabinets, and modular storage systems.
• Robotics and Automation Frames: Ideal for precise assemblies in robotic or automated equipment frames.
• Exhibition and Display Stands: Create modular and portable display structures for trade shows or retail setups.

This flexibility makes the Connector Plate Kit 40mm Steel BZP – Series 8 a must-have for anyone working with aluminium profile systems.

Installation Guide for Connector Plate Kit 40mm Steel BZP – Series 8

Assembling your Series 8 aluminium profile structures with this connector plate kit is simple. Follow these steps:

1. Position the Plate: Align the 40mm steel connector plate between the two profile elements you want to join.
2. Insert Slot Nuts: Slide the M8 slot nuts (11.08.0110) into the T-slot channels of the aluminium profiles.
3. Add Bolts: Insert the M8x12 socket countersunk bolts (BZP) through the connector plate and into the slot nuts.
4. Tighten Securely: Using a hex key, tighten the bolts until the connection is firm and stable. Avoid over-tightening to prevent profile deformation.
5. Check Alignment: Ensure the profiles are correctly aligned and adjust as necessary before final tightening.

With just these simple steps, you can achieve a strong and reliable connection using the Connector Plate Kit 40mm Steel BZP – Series 8.

Benefits of Using Series 8 Aluminium Profile Elements

The Connector Plate Kit 40mm Steel BZP – Series 8 is designed to complement the advantages of Series 8 aluminium profiles, including:

• High Load Capacity: Series 8 profiles are among the strongest modular aluminium extrusions available, capable of supporting heavy assemblies.
• Modularity: Easily adjust or expand your structures without major modifications.
• Durability: Long-lasting aluminium material with excellent corrosion resistance.
• Aesthetic Finish: Clean and professional appearance for industrial and commercial applications.
• Ease of Integration: Compatible with a wide range of modular components and accessories, including our Connector Plate Kit 40mm Steel BZP – Series 8.

Using the right connector kit ensures that your Series 8 profiles reach their full potential in terms of strength and stability.

Maintenance Tips for Your Connector Plate Kit 40mm Steel BZP – Series 8

To ensure long-term performance:

• Inspect Regularly: Check bolts and nuts for tightness periodically.
• Avoid Moisture Exposure: While BZP coating offers corrosion protection, prolonged exposure to water or harsh chemicals should be minimized.
• Lubricate if Needed: For smooth adjustments, light lubrication of slot nuts may help.
• Store Spare Hardware Properly: Keep unused bolts and nuts in a dry place to prevent rust.

Proper maintenance will extend the life of your Connector Plate Kit 40mm Steel BZP – Series 8 and maintain the integrity of your aluminium assemblies.

Part of the Series 8 range of aluminium profile & components

Being part of the Series 8 8mm t-slot profile range, this product is compatible with a wide range of profiles, cable management, castors, feet and base plates, connecting blocks, cover & reduction profiles, door elements, end caps, glazing accessories, handles, hinges, levelling pads, rollers, slot nuts, and tools. The versatile range of profiles and components allow you to build a variety of custom and bespoke projects for private or commercial use.

Why Buy from Valuframe

At Valuframe, we specialise in providing premium aluminium profile systems and accessories. Choosing our Connector Plate Kit 40mm Steel BZP – Series 8 means you benefit from:

• Quality Assurance: All components are manufactured to exacting standards.
• Expert Support: Our team can advise on profile assembly and component selection.
• Fast Delivery: Get your kit quickly, ready to use in your projects.
• Comprehensive Range: We offer a full range of Series 8 aluminium profile elements and accessories to suit any project.

Invest in the Connector Plate Kit 40mm Steel BZP – Series 8 from Valuframe for reliable, high-performance aluminium profile connections.

The Connector Plate Kit 40mm Steel BZP – Series 8 is a high-quality, durable, and easy-to-use solution for connecting Series 8 aluminium profiles. Its steel BZP construction, complete hardware kit, and precise engineering make it ideal for industrial applications, DIY projects, and custom modular builds.

Whether you are constructing workstations, machine guards, storage systems, or display units, this connector plate kit ensures a secure and stable connection every time. With Valuframe’s trusted products, achieving professional-grade aluminium assemblies has never been easier.

Choose the Connector Plate Kit 40mm Steel BZP – Series 8 today and experience the strength, precision, and versatility that only premium aluminium profile accessories can provide.
