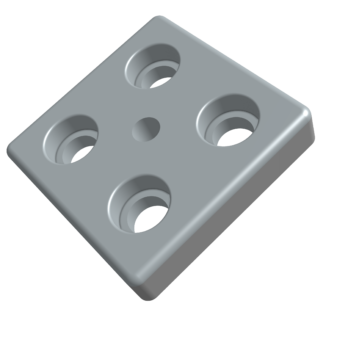

Endplate 80mm x 80mm M8 Diecast Zinc – Series 8 Aluminium Profile Base Plates
£9.50 exc VAT

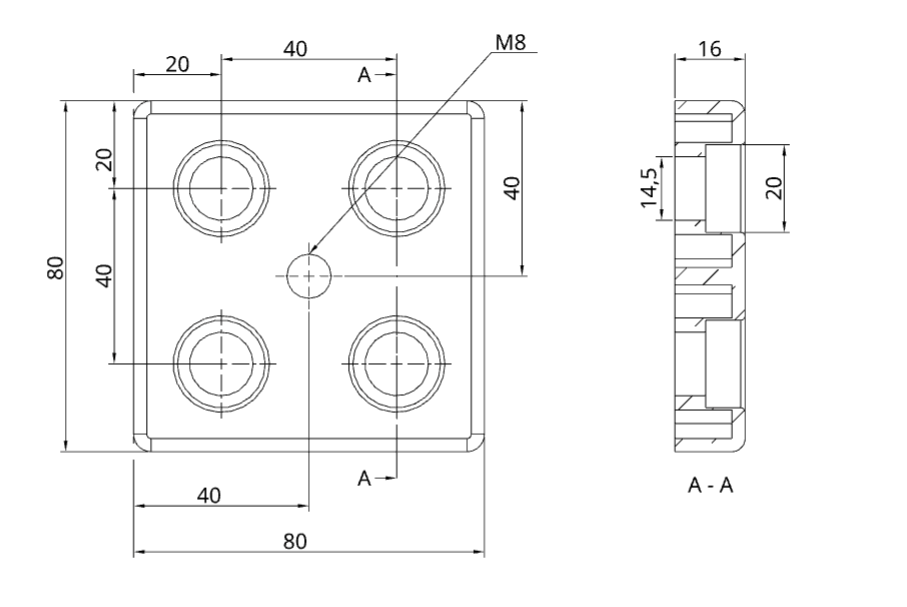

Download Dimensions as PDF
Download Step File
Note: If you experience download issues, right click the link and select "Save link as".
- Durable robust design
- Easy customisation
- High quality materials
- Versatile profiles & components
The Endplate 80mm x 80mm M8 Diecast Zinc – Series 8 is a precision-engineered base and end fixing solution designed specifically for use with Series 8 aluminium profile systems. Built for strength, durability and long-term stability, this robust zinc diecast endplate is ideal for industrial frameworks, machine bases, workstations, guarding systems and modular structures where reliability is essential.
As part of the wider category of castors, feet and base plates, this component plays a critical role in providing a solid foundation for aluminium extrusion builds. Whether you are constructing machinery frames, safety enclosures or heavy-duty structural assemblies, the Endplate 80mm x 80mm M8 Diecast Zinc – Series 8 delivers dependable performance in demanding environments.
Designed for Series 8 Aluminium Profiles
The Series 8 aluminium profile system is one of the most widely used T-slot extrusion systems in industrial and commercial applications. Based on a 40mm core with an 8mm slot, Series 8 profiles offer outstanding flexibility, load capacity and modularity. The Endplate 80mm x 80mm M8 Diecast Zinc – Series 8 has been specifically engineered to integrate seamlessly with this profile range, ensuring accurate alignment and secure fixing.
This compatibility makes it an ideal solution for machine frames, enclosures, guarding, automation equipment, conveyors and bespoke structural frameworks. When paired with Series 8 aluminium extrusions, the endplate helps distribute loads evenly while maintaining the clean, professional finish expected from modern modular systems.
High-Strength Diecast Zinc Construction
Manufactured from high-quality diecast zinc, the Endplate 80mm x 80mm M8 Diecast Zinc – Series 8 offers excellent strength-to-weight performance and long-term corrosion resistance. Zinc diecasting ensures precise dimensions, smooth surfaces and consistent quality across every component, making it suitable for both light-duty and heavy-duty installations.
Diecast zinc is particularly valued in industrial environments due to its resistance to wear, impact and deformation. This makes the endplate ideal for applications where machinery vibration, repeated loading or frequent adjustment is expected.
Integrated M8 Fixing for Secure Installation
Featuring a central M8 threaded fixing, the Endplate 80mm x 80mm M8 Diecast Zinc – Series 8 provides a secure mounting point for levelling feet, castors or fixed base installations. The M8 thread size is a widely used industry standard, allowing compatibility with a broad range of adjustable feet, anti-vibration mounts and mobility solutions.
This flexibility makes the endplate suitable for static frames that require precise levelling, as well as mobile structures that need castors for easy repositioning. Whether you are building a fixed workstation or a movable machine base, this endplate supports a wide range of configuration options.
Ideal for Castors, Feet and Base Plate Applications
As a core component within the castors, feet and base plates category, the Endplate 80mm x 80mm M8 Diecast Zinc – Series 8 is designed to enhance both stability and functionality. It provides a strong interface between aluminium profiles and floor-mounted components, helping to absorb loads and improve overall structural integrity.
Common applications include:
- Machine and automation frames
- Industrial workstations and benches
- Safety guarding and enclosures
- Conveyor systems
- Modular shelving and storage systems
- Inspection tables and test rigs
In each case, the endplate contributes to improved rigidity, load distribution and long-term durability.
Precision Engineering for Professional Results
Accuracy is essential when building modular aluminium structures, and the Endplate 80mm x 80mm M8 Diecast Zinc – Series 8 is manufactured to tight tolerances to ensure perfect alignment with Series 8 profiles. The 80mm x 80mm footprint matches the profile dimensions precisely, delivering a clean, flush finish that enhances both structural performance and visual appearance.
This precision also reduces installation time, making the endplate an efficient choice for both one-off custom builds and larger production runs.
Suitable for Industrial and Commercial Environments
The Endplate 80mm x 80mm M8 Diecast Zinc – Series 8 is suitable for use across a wide range of industries, including manufacturing, engineering, logistics, laboratories, education and automation. Its robust construction and corrosion-resistant properties make it well suited for workshops, factories and other demanding environments where long-term reliability is required.
Whether used in light industrial settings or heavy-duty machinery installations, this endplate provides consistent performance and peace of mind.
Easy Integration into Modular Builds
One of the key advantages of Series 8 aluminium extrusion systems is their modular nature, and the Endplate 80mm x 80mm M8 Diecast Zinc – Series 8 supports this perfectly. It can be easily installed, removed or repositioned as your structure evolves, allowing for future expansion or reconfiguration without compromising strength.
This makes it an excellent choice for prototyping, custom machinery builds and scalable production environments where flexibility is essential.
Why Choose This Series 8 Endplate?
Choosing the Endplate 80mm x 80mm M8 Diecast Zinc – Series 8 means investing in a high-quality, reliable component that enhances the performance and longevity of your aluminium profile structure. Its combination of strength, precision and compatibility ensures it meets the expectations of professional engineers, fabricators and system designers.
Key benefits include:
- Designed specifically for Series 8 aluminium profiles
- Durable diecast zinc construction
- M8 threaded fixing for versatile mounting options
- Ideal for castors, levelling feet and base installations
- Suitable for industrial, commercial and bespoke applications
The Endplate 80mm x 80mm M8 Diecast Zinc – Series 8 is an essential component for anyone building with Series 8 aluminium profiles. Delivering strength, precision and flexibility, it provides a stable foundation for a wide range of structural and industrial applications. Whether you are designing a machine frame, workstation or modular system, this endplate ensures professional results and long-term performance.
Part of the Series 8 range of aluminium profile & components
Being part of the Series 8 8mm t-slot profile range, this product is compatible with a wide range of profiles, cable management, connecting blocks and elements, cover & reduction profiles, door elements, end caps, glazing accessories, handles, hinges, levelling pads, rollers, slot nuts, and tools. The versatile range of profiles and components allow you to build a variety of custom and bespoke projects for private or commercial use.
Please make sure this is the correct series part to match the profile series you are purchasing or using. Thank you.
