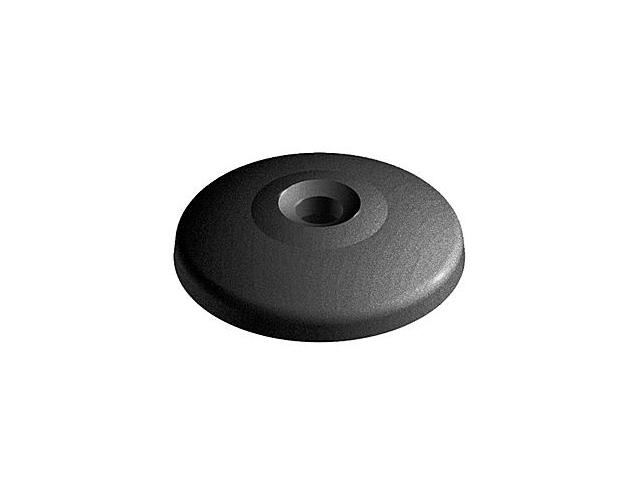

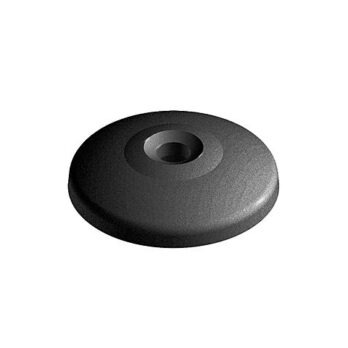

Levelling Pad 80mm M10 x 80mm – All Aluminium Profile Series
£10.00 exc VAT
SKU 18.10.0247 Categories Series 5 Levelling Pads, Series 6 Levelling Pads, Series 8 Levelling Pads
Note: If you experience download issues, right click the link and select "Save link as".
- Durable robust design
- Easy customisation
- High quality materials
- Versatile profiles & components
The Levelling Pad 80mm M10 x 80mm is a robust, precision-engineered adjustable foot designed to provide stability, height adjustment, and vibration reduction for aluminium profile structures. Manufactured for use across Series 5, Series 6 and Series 8 aluminium profile systems, this levelling foot is ideal for industrial, commercial, and workshop applications where accurate alignment and load distribution are critical.
Whether you are building machinery frames, workbenches, enclosures, trolleys, or modular furniture, the Levelling Pad 80mm M10 x 80mm ensures a solid foundation even on uneven floors. Its wide 80mm base improves load spreading, while the M10 threaded stem allows for precise height adjustment and secure fixing into T-slot aluminium extrusions.
Designed for Aluminium Profile Systems (Series 5, 6 & 8)
This levelling pad has been specifically designed to integrate seamlessly with all major aluminium profile systems, including Series 5, Series 6 and Series 8. The M10 thread size is a popular standard across modular framing systems, making installation straightforward and compatibility reliable.
The Levelling Pad 80mm M10 x 80mm is commonly used in conjunction with T-slot profiles, slot nuts, threaded inserts, and base plates, allowing designers and fabricators to achieve accurate levelling without compromising structural integrity.
Key Features and Benefits
One of the standout advantages of the Levelling Pad 80mm M10 x 80mm is its combination of strength, adjustability, and durability. Designed for demanding environments, it offers a long service life with minimal maintenance.
Key benefits include:
- Wide 80mm base diameter for enhanced stability
- M10 threaded stud for fine height adjustment
- Excellent load distribution on uneven surfaces
- Compatible with Series 5, 6 and 8 aluminium profiles
- Ideal for industrial, commercial, and workshop use
- Reduces vibration and movement
- Quick and easy installation
Thanks to its all-metal construction, the levelling pad performs reliably in workshops, factories, warehouses, and cleanroom environments.
Typical Applications
The Levelling Pad 80mm M10 x 80mm is extremely versatile and is widely used across many industries where aluminium profile systems are preferred for modular construction.
Common applications include:
- Workstations and industrial benches
- Machine frames and automation equipment
- Conveyor systems
- Assembly tables
- Safety guarding and enclosures
- Modular storage systems
- Display stands and exhibition frames
- Laboratory furniture
Wherever accurate levelling and stable footing are required, this levelling pad provides a professional and dependable solution.
Precision Adjustment for Uneven Floors
Uneven floors are a common challenge in industrial and commercial environments. The Levelling Pad 80mm M10 x 80mm solves this problem by allowing fine vertical adjustment directly at each corner of the structure.
The M10 thread enables precise height control, helping to:
- Prevent rocking or instability
- Improve machine accuracy
- Reduce long-term wear on frames and fixings
- Maintain safe working conditions
Once set, the levelling pad holds firmly in place, ensuring the structure remains level even under continuous load.
Durable Construction for Long-Term Use
Built for strength and longevity, the Levelling Pad 80mm M10 x 80mm is manufactured from high-quality materials suitable for demanding environments. The solid metal base resists deformation, while the threaded stem offers excellent tensile strength and resistance to loosening over time.
This makes it ideal for:
- High-traffic work areas
- Heavy equipment support
- Repeated adjustment during commissioning
- Long-term static installations
Its corrosion-resistant finish also makes it suitable for indoor industrial use where cleanliness and durability are essential.

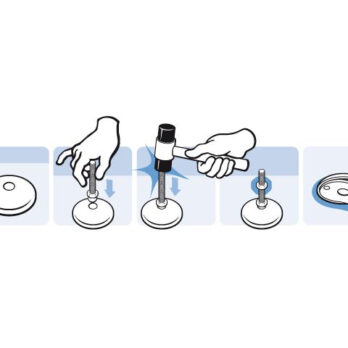

Easy Installation and Compatibility
Installing the Levelling Pad 80mm M10 x 80mm is quick and straightforward. The M10 threaded stem screws directly into a compatible threaded insert, slot nut, or tapped base plate within the aluminium profile system.
No specialist tools are required, making it ideal for:
- Rapid assembly
- Modular system reconfiguration
- On-site installation and adjustment
Because it works across Series 5, 6 and 8 profiles, it can be used as a standard component across multiple builds, simplifying stock management and design consistency.

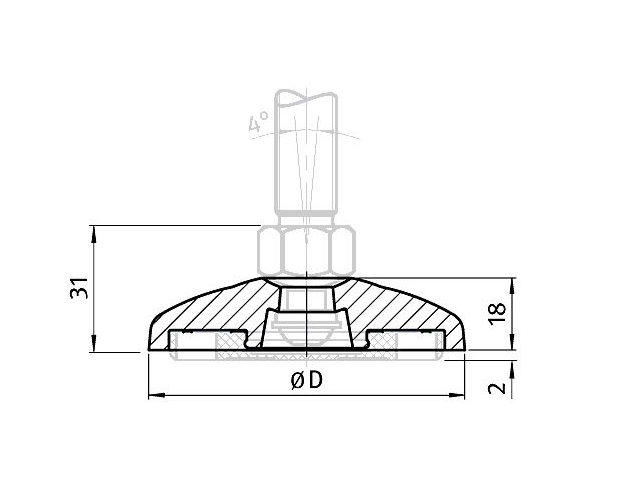

Technical Overview
The Levelling Pad 80mm M10 x 80mm has been designed to meet the practical requirements of aluminium framing systems while maintaining a clean, professional appearance.
Typical specifications include:
- Base diameter: 80mm
- Thread size: M10
- Adjustment range: Dependent on thread length
- Compatibility: Series 5, Series 6 and Series 8 aluminium profiles
- Use: Levelling, height adjustment, vibration reduction
This balance of size and strength makes it suitable for both light-duty and medium-duty applications.
Why Choose This Levelling Pad?
Choosing the Levelling Pad 80mm M10 x 80mm means investing in stability, precision, and reliability. It is an essential component for anyone building modular aluminium profile structures where professional results are expected.
Key reasons to choose this product:
- Trusted compatibility with popular aluminium profile systems
- Strong, stable base for improved load support
- Clean integration into modular designs
- Excellent value for long-term installations
Whether you are an engineer, fabricator, or DIY system builder, this levelling pad delivers consistent performance and peace of mind.
The Levelling Pad 80mm M10 x 80mm is a vital accessory for aluminium profile construction, offering precise adjustment, excellent stability, and wide system compatibility. Designed for Series 5, 6 and 8 aluminium profiles, it is ideal for industrial frames, workstations, machinery, and modular furniture.
If you need a dependable solution for levelling aluminium structures on uneven surfaces, this levelling pad is a proven and professional choice.
Part of the Series 5, 6 & 8 range of aluminium profile & components
Being part of the Series 5, 6 & 8 t-slot profile range, this product is compatible with a wide range of profiles, cable management, castors, feet and base plates, connecting blocks, connector elements, cover & reduction profiles, door elements, end caps, glazing accessories, handles, hinges, rollers, slot nuts, and tools. The versatile range of profiles and components allow you to build a variety of custom and bespoke projects for private or commercial use.
Please make sure this is the correct series part to match the profile series you are purchasing or using. Thank you.
