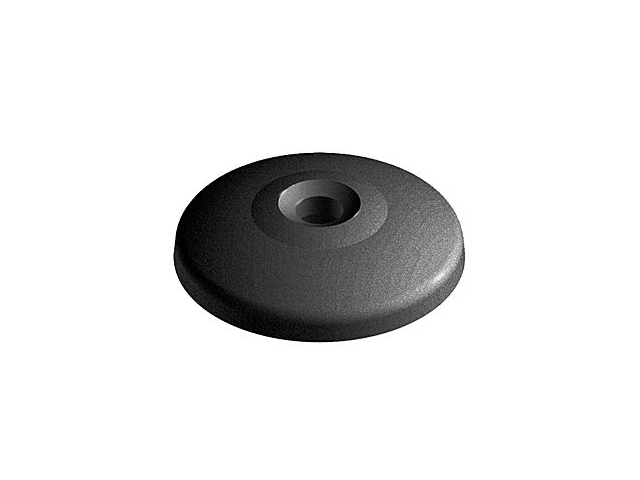

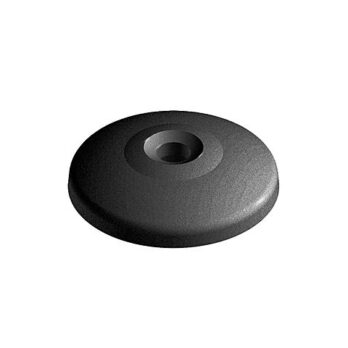

Levelling Pad 80mm M12 x 100mm – All Aluminium Profile Series

The Levelling Pad 80mm M12 x 100mm is a robust, precision-engineered adjustable foot designed to provide reliable height adjustment, load distribution, and stability for aluminium profile constructions. Suitable for Series 5, Series 6, and Series 8 aluminium profile systems, this levelling pad is ideal for industrial frames, workstations, machine bases, enclosures, trolleys, and modular furniture.

Manufactured with a durable aluminium base and a high-strength M12 threaded stud, this component ensures long-term performance in demanding environments while maintaining compatibility across multiple aluminium extrusion systems. Whether you are building a bespoke workstation or installing a heavy-duty industrial frame, the Levelling Pad 80mm M12 x 100mm delivers accuracy, strength, and ease of adjustment.

Designed for Series 5, 6 and 8 Aluminium Profiles

This adjustable levelling foot has been engineered to work seamlessly across all aluminium profile Series 5, Series 6, and Series 8 frameworks, making it a versatile solution for mixed-system builds and future-proof designs. The M12 thread size is a widely adopted standard in aluminium extrusion systems, ensuring quick installation into compatible slot nuts, threaded plates, or base fixings.

Using a single levelling solution across multiple profile series simplifies procurement, reduces component variation, and streamlines assembly. The Levelling Pad 80mm M12 x 100mm is ideal for modular systems where flexibility and scalability are essential.

Heavy-Duty Stability and Load Distribution

The large 80mm diameter base provides excellent load distribution, reducing point pressure on floors and improving overall stability. This makes the levelling pad suitable for both light-duty furniture applications and heavier industrial structures such as machinery frames, guarding systems, and conveyor supports.

The aluminium base is corrosion-resistant and well-suited for workshops, factories, laboratories, and clean environments. When installed correctly, the Levelling Pad 80mm M12 x 100mm helps eliminate vibration, uneven surfaces, and frame distortion caused by imperfect floors.

Precision Height Adjustment with M12 Thread

The 100mm M12 threaded stem offers a generous adjustment range, allowing users to fine-tune height accurately during installation. This makes levelling frames fast, precise, and repeatable, even on uneven or sloped floors.

Adjustability is essential for ensuring structural alignment, especially in applications involving machinery, work surfaces, or safety guarding. The Levelling Pad 80mm M12 x 100mm allows for micro-adjustments without disassembling the frame, saving time during setup and maintenance.

Durable Construction

Constructed from high-quality materials, this levelling foot offers an excellent balance of strength, weight, and corrosion resistance. Widely used in modular profile systems due to its longevity and low maintenance requirements.

The Levelling Pad 80mm M12 x 100mm is suitable for both indoor and controlled outdoor applications where durability is critical.

Ideal Applications and Use Cases

This levelling pad is commonly used across a wide range of aluminium profile applications, including:

• Industrial workstations and benches
• Modular furniture and shelving systems
• Machine frames and equipment bases
• Safety enclosures and guarding
• Trolleys, carts, and mobile structures
• Automation and robotics frameworks

Thanks to its compatibility across Series 5, 6 and 8 profiles, the Levelling Pad 80mm M12 x 100mm is a go-to component for engineers, fabricators, and system designers seeking a reliable adjustable foot solution.

Easy Installation and System Integration

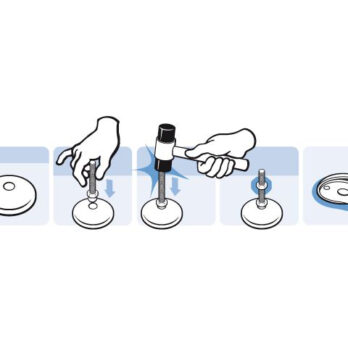

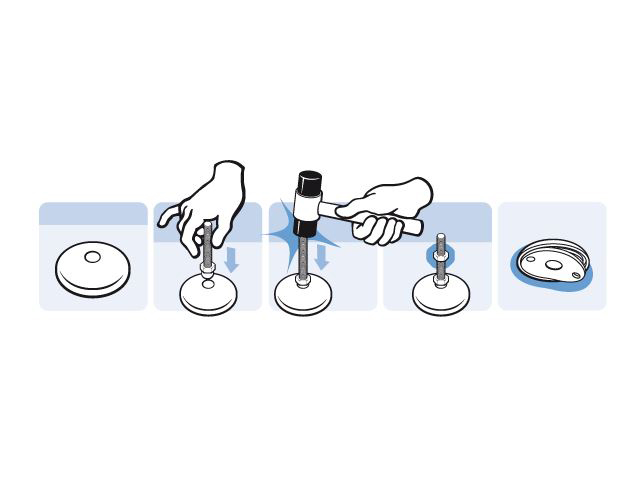

Installation is straightforward and requires minimal tools. The M12 threaded stem inserts directly into compatible threaded slot nuts or base plates, allowing rapid assembly during frame construction.

For modular aluminium systems, speed and accuracy matter. The Levelling Pad 80mm M12 x 100mm supports lean build processes by reducing installation time while ensuring a professional, level finish.

Why Choose This Levelling Pad?

Choosing the right levelling foot is essential for performance, safety, and longevity. This component offers:

• Cross-compatibility with Series 5, 6 and 8 aluminium profiles
• Strong M12 threaded adjustment
• Large 80mm base for superior load spreading
• Precision height control for uneven floors

For modular aluminium builds where quality and adaptability are essential, the Levelling Pad 80mm M12 x 100mm delivers outstanding value and reliability.

Part of the Series 5, 6 & 8 range of aluminium profile & components

Being part of the Series 5, 6 & 8 t-slot profile range, this product is compatible with a wide range of profiles, cable management, castors, feet and base plates, connecting blocks, connector elements, cover & reduction profiles, door elements, end caps, glazing accessories, handles, hinges, rollers, slot nuts, and tools. The versatile range of profiles and components allow you to build a variety of custom and bespoke projects for private or commercial use.

Supporting Modular and Bespoke Aluminium Builds

In modern aluminium profile systems, flexibility is key. This levelling pad supports bespoke builds and scalable designs by allowing easy repositioning, height changes, and reconfiguration over time.

Whether you are creating a one-off custom frame or a repeatable production system, the Levelling Pad 80mm M12 x 100mm integrates seamlessly into modular aluminium extrusion frameworks.

The Levelling Pad 80mm M12 x 100mm is a high-performance adjustable foot designed for stability, precision, and compatibility across Series 5, 6, and 8 aluminium profile systems. With its durable construction, wide base, and extended M12 adjustment range, it is an essential component for professional aluminium profile assemblies.
