Multiblock – Series 5 Aluminium Profile Glazing Accessory
£1.70 exc VAT

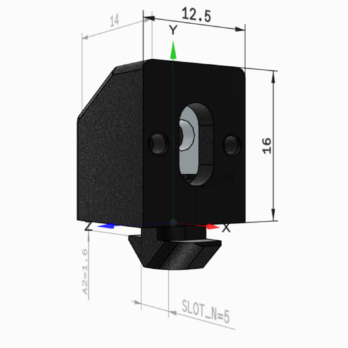

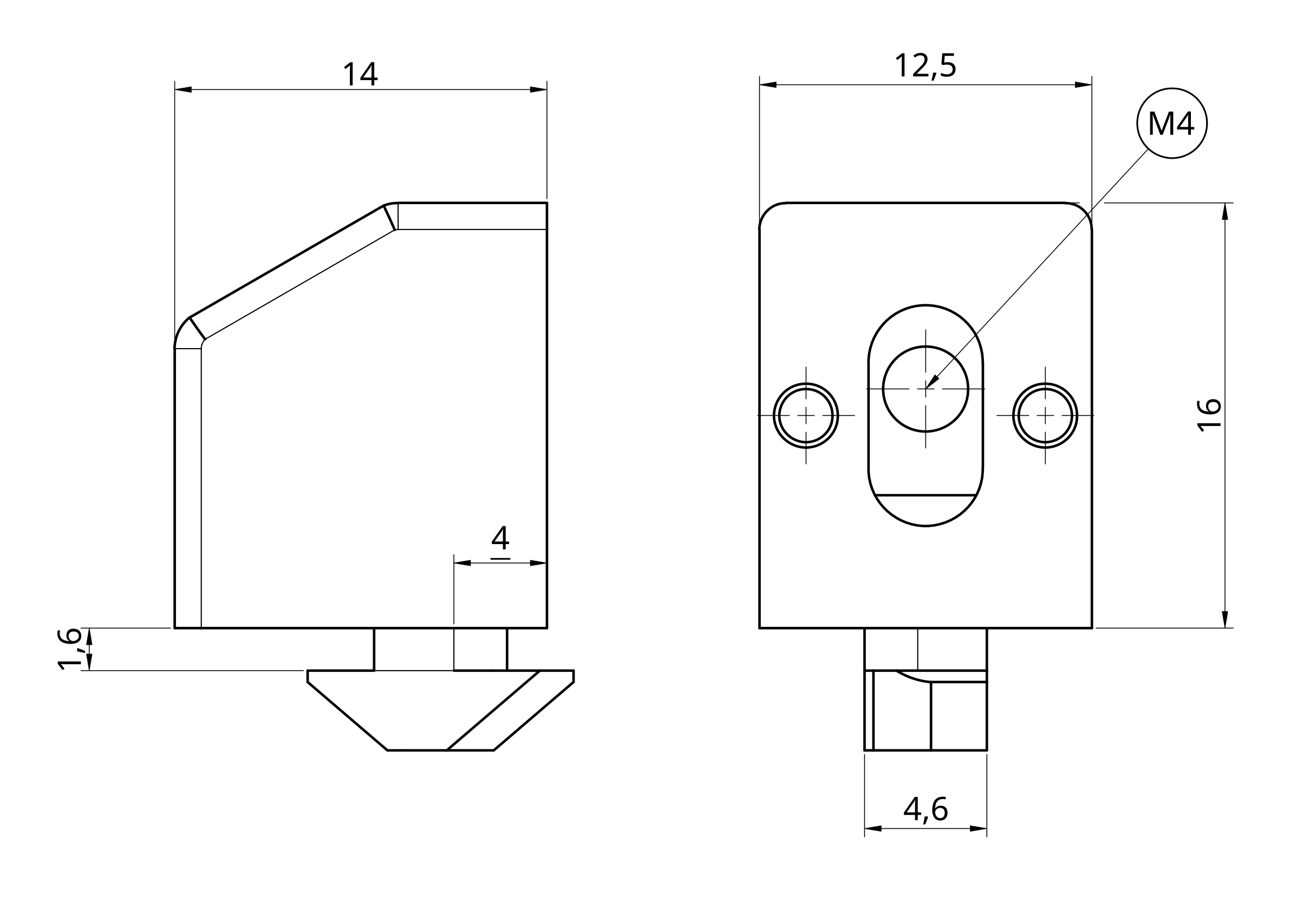

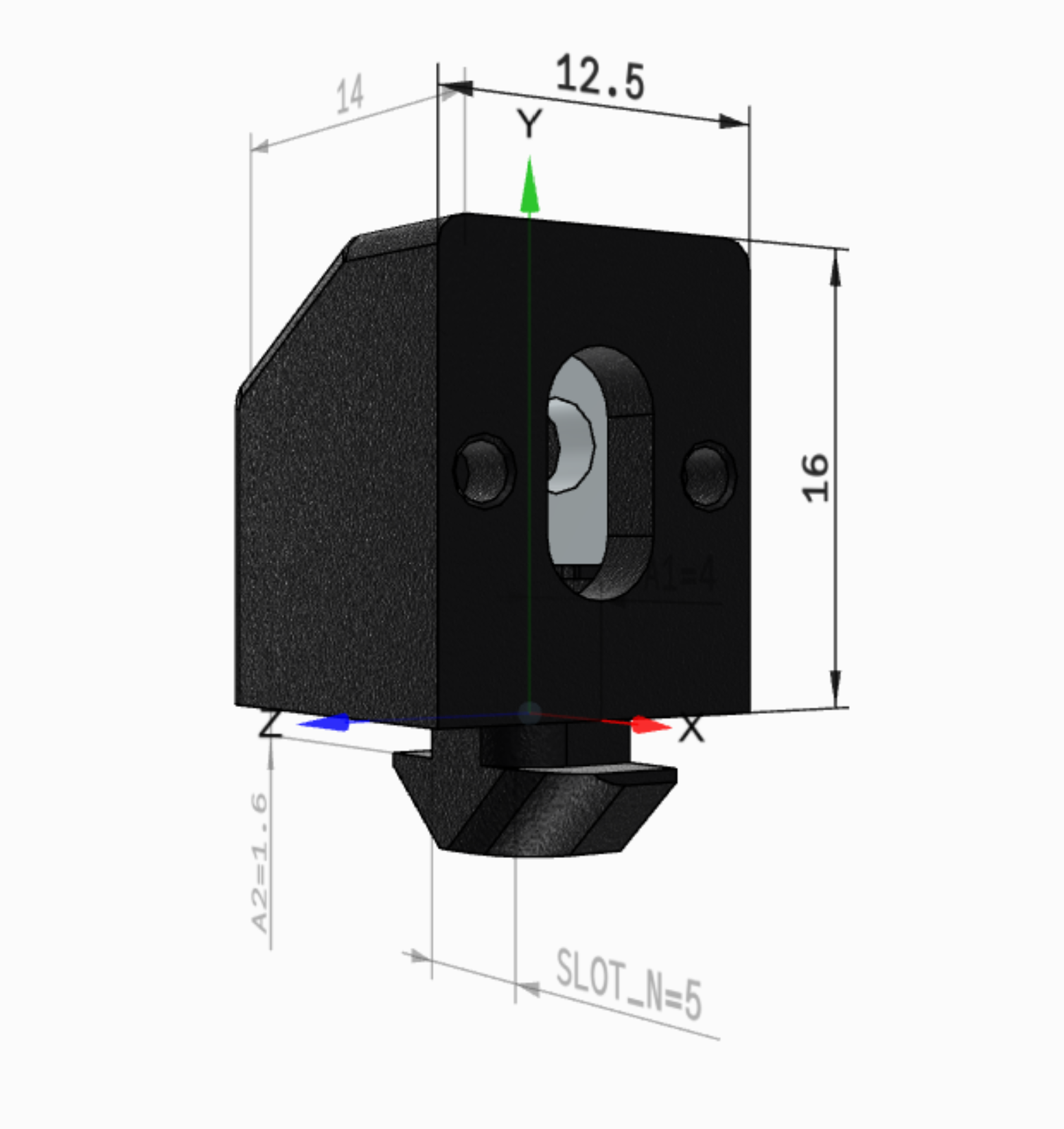

Download Dimensions as PDF
Download Step File
Note: If you experience download issues, right click the link and select "Save link as".
- Durable robust design
- Easy customisation
- High quality materials
- Versatile profiles & components
Multiblock – Series 5 Aluminium Profile Cable Management Solution
The Series 5 aluminium profile cable management block is a versatile, precision-engineered component designed for use with Series 5 aluminium extrusion systems. Developed to offer maximum flexibility, strength, and alignment accuracy, this innovative multiblock allows panels of varying thicknesses to be mounted cleanly while maintaining a flush finish with the profile face.
Ideal for industrial frameworks, machine guarding, workstations, enclosures, automation systems, and modular furniture builds, the Multiblock delivers professional results where cable routing, panel mounting, and alignment consistency are critical.
Designed for Flexible Panel Mounting
At the core of the Multiblock – Series 5 design is a clever twist-in retaining lug that locates securely into the aluminium profile slot. Unlike standard panel blocks, the centre line of this block is intentionally offset. This offset design allows the block to be reversed, and when combined with the supplied spacer, enables four different offset distances from the profile centre line.
This unique functionality means the multiblock can accommodate panels of various thicknesses without compromising alignment. Regardless of panel depth, the front face remains perfectly in line with the aluminium profile, delivering a clean, professional appearance across all applications.
Optimised for Series 5 Aluminium Profiles
Specifically engineered for Series 5 aluminium profiles, the Multiblock – Series 5 integrates seamlessly into 20mm modular framing systems. It is fully compatible with common aluminium extrusion slot dimensions, making it a reliable choice for both new builds and retrofitting existing frames.
Whether you are assembling a control cabinet, protective guarding, or a modular workstation, the Multiblock – Series 5 ensures secure panel positioning while supporting effective cable management within the profile structure.
Precision Cable Management Made Simple
Cable management is a crucial consideration in modern aluminium profile systems, particularly in automation, electrical, and industrial environments. The Multiblock helps streamline cable routing by allowing panels to sit correctly without pinching or misaligning internal wiring.
By maintaining consistent spacing and flush alignment, the Multiblock – Series 5 contributes to safer, tidier installations. This reduces wear on cables, improves airflow within enclosures, and supports compliance with industrial safety standards.
High-Quality Aluminium Profile Accessory
Manufactured to exacting standards, the Multiblock – Series 5 is built for durability and long-term performance. Designed for repeated installation and adjustment, it offers excellent resistance to vibration, movement, and mechanical stress.
As a premium aluminium profile accessory, it complements the strength and modularity of Series 5 extrusions, making it suitable for demanding industrial environments as well as commercial and domestic modular builds.
Ideal Applications for Multiblock – Series 5
The Multiblock is widely used across a range of industries and applications, including:
- Aluminium profile cable management systems
- Machine guarding and safety enclosures
- Industrial automation frames
- Control panels and electrical cabinets
- Modular workstations and benches
- Display systems and retail fixtures
- Bespoke aluminium frame constructions
Its flexibility makes the Multiblock – Series 5 an essential component for designers and engineers who require adaptable panel positioning without custom machining.
Faster Installation and Reduced Build Time
One of the standout advantages of the Multiblock – Series 5 is installation efficiency. The twist-in retaining lug design allows quick positioning within the profile slot, reducing assembly time and simplifying on-site adjustments.
The ability to reverse the block and use spacers to achieve different offsets eliminates the need for multiple components, helping streamline inventory and reduce overall build costs.
Clean Aesthetic with Professional Results
Maintaining a flush, aligned finish is essential for both functional and visual reasons. The Multiblock – Series 5 ensures that panels remain level with the profile face regardless of thickness, delivering a consistent and professional appearance across entire aluminium profile systems.
This makes the Multiblock – Series 5 particularly valuable in customer-facing environments, clean rooms, laboratories, and commercial installations where presentation matters as much as performance.
Why Choose Multiblock – Series 5?
Choosing the Multiblock – Series 5 means investing in flexibility, precision, and reliability. Its intelligent design supports modular construction principles while providing the adaptability needed for real-world applications.
Key benefits include:
- Multiple offset positions from a single component
- Compatibility with Series 5 aluminium profiles
- Improved cable management and panel alignment
- Reduced installation time and component count
- Durable construction for long-term use
For anyone working with aluminium extrusion systems, the Multiblock is a smart, cost-effective solution that enhances both performance and aesthetics.
Part of the Series 5 range of aluminium profile & components
Being part of the Series 5 5mm t-slot profile range, this product is compatible with a wide range of profiles, castors, feet and base plates, connecting blocks, connector elements, cover & reduction profiles, door elements, end caps, glazing accessories, handles, hinges, levelling pads, slot nuts, and tools. The versatile range of profiles and components allow you to build a variety of custom and bespoke projects for private or commercial use.
A Versatile Component for Modern Aluminium Systems
As modular aluminium framing continues to grow in popularity, components like the Multiblock – Series 5 play a vital role in creating adaptable, scalable, and future-proof structures. Its ability to accommodate different panel thicknesses without redesign makes it a go-to accessory for evolving projects.
Whether you are building a one-off bespoke structure or rolling out repeatable production frames, the Multiblock – Series 5 delivers consistency, flexibility, and professional-grade results every time.
Please make sure this is the correct series part to match the profile series you are purchasing or using. Thank you.
