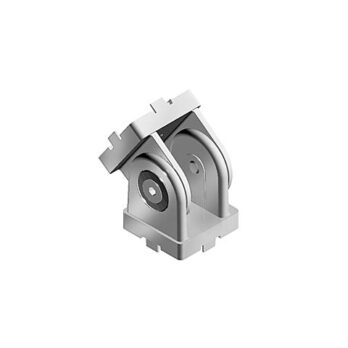

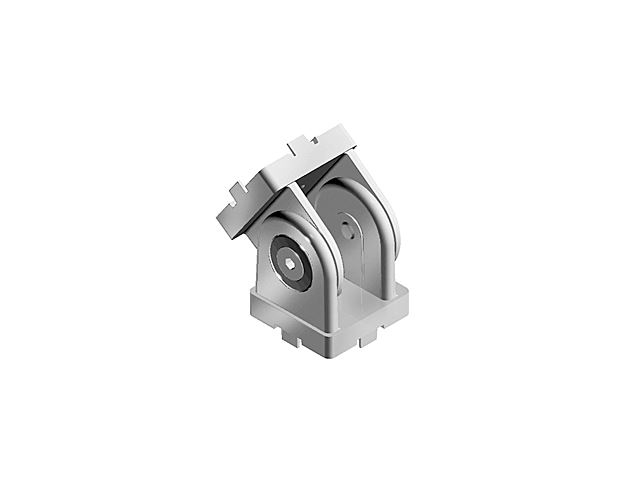

Pivot Angle 40mm x 40mm – Series 8 Aluminium Profile Connector Element
£17.50 exc VAT

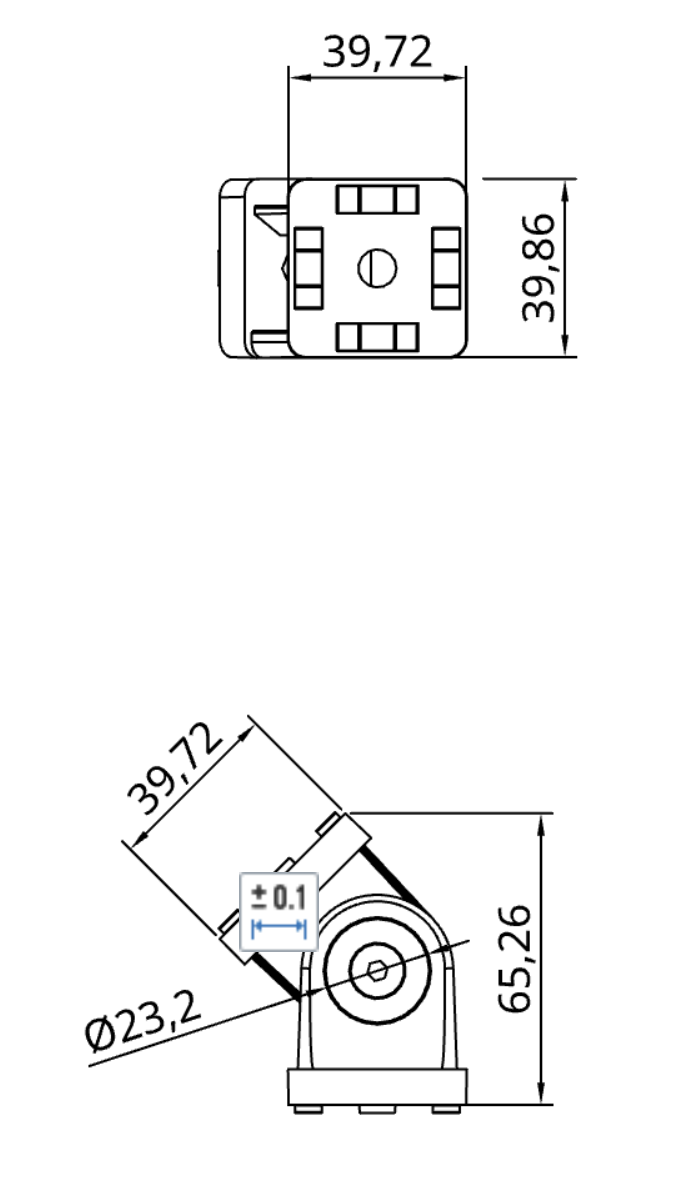

Download Dimensions as PDF
Download Step File
Note: If you experience download issues, right click the link and select "Save link as".
- Durable robust design
- Easy customisation
- High quality materials
- Versatile profiles & components
The Pivot Angle 40mm x 40mm – Series 8 is a highly versatile aluminium profile connector element designed to bring flexibility, strength, and precision to modular construction systems. Commonly used within Series 8 aluminium profile frameworks, this pivot angle connector allows users to create adjustable joints that can be easily repositioned to suit changing design requirements. Whether you are building industrial workstations, machine frames, guarding systems, or bespoke modular structures, the Pivot Angle 40mm x 40mm – Series 8 provides reliable performance and long-term durability.
Manufactured to exacting tolerances, this connector integrates seamlessly with Profile 8 aluminium extrusions, making it a popular choice for engineers, designers, and system builders who demand accuracy and repeatability in their assemblies.
Designed for Series 8 Aluminium Profile Systems
The Pivot Angle 40mm x 40mm – Series 8 has been specifically engineered for compatibility with Profile 8 aluminium extrusion systems. Series 8 profiles are widely recognised across industrial automation, manufacturing, and custom fabrication sectors for their strength, modularity, and ease of use. This pivot angle connector complements those qualities by allowing precise angular adjustment between connected profiles.
Using a Pivot Angle 40mm x 40mm – Series 8 connector enables structures to be adapted or reconfigured without the need for cutting or welding. This makes it ideal for dynamic environments where layouts may change over time, such as production lines, laboratories, or prototype development areas.
Precision Engineering and Build Quality
Each Pivot Angle 40mm x 40mm – Series 8 connector is manufactured from high-quality materials designed to withstand repeated adjustments while maintaining structural integrity. The robust construction ensures a secure connection between 40mm x 40mm aluminium profiles, even in demanding industrial applications.
Precision-machined contact surfaces allow for accurate alignment, reducing play and improving overall rigidity once tightened. This level of engineering quality ensures that the Pivot Angle 40mm x 40mm – Series 8 performs consistently, whether used in light-duty modular furniture or heavy-duty industrial frameworks.
Adjustable Angles for Maximum Flexibility

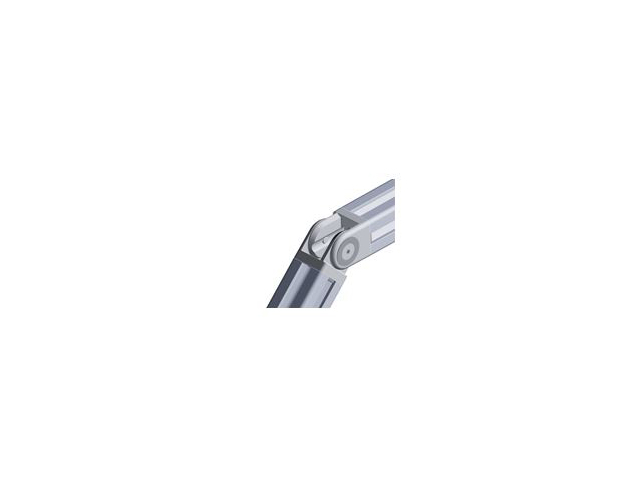

One of the key advantages of the Pivot Angle 40mm x 40mm – Series 8 is its ability to create adjustable joints. Unlike fixed-angle brackets, pivot connectors allow profiles to rotate around a central axis, giving designers freedom to set custom angles as required.
This makes the Pivot Angle 40mm x 40mm – Series 8 particularly valuable for applications such as adjustable machine guards, angled support arms, hinged frames, and moving assemblies. Once the desired angle is achieved, the connector can be securely locked in place, delivering both flexibility and stability in one compact component.
Ideal for Industrial and Commercial Applications
The Pivot Angle 40mm x 40mm – Series 8 is widely used across a range of industries thanks to its adaptability and strength. Common applications include:
- Industrial workstations and assembly benches
- Machine frames and automation systems
- Safety guarding and enclosures
- Conveyor support structures
- Adjustable shelving and storage systems
- Prototyping and R&D frameworks
In each of these scenarios, the Pivot Angle 40mm x 40mm – Series 8 provides a reliable solution for connecting aluminium profiles at variable angles while maintaining the clean, professional appearance associated with modular aluminium systems.
Seamless Integration with Profile 8 Components
Compatibility is critical when building modular structures, and the Pivot Angle 40mm x 40mm – Series 8 has been designed to integrate seamlessly with other Profile 8 components. It works alongside T-slot nuts, bolts, brackets, and connectors commonly used in Series 8 aluminium profile assemblies.
By using a Pivot Angle 40mm x 40mm – Series 8, builders can maintain consistency across their framework, ensuring all components work together efficiently. This not only simplifies the design process but also speeds up installation and future modifications.
Part of the Series 8 range of aluminium profile & components
Being part of the Series 8 8mm t-slot profile range, this product is compatible with a wide range of profiles, cable management, castors, feet and base plates, connecting blocks, cover & reduction profiles, door elements, end caps, glazing accessories, handles, hinges, levelling pads, rollers, slot nuts, and tools. The versatile range of profiles and components allow you to build a variety of custom and bespoke projects for private or commercial use.

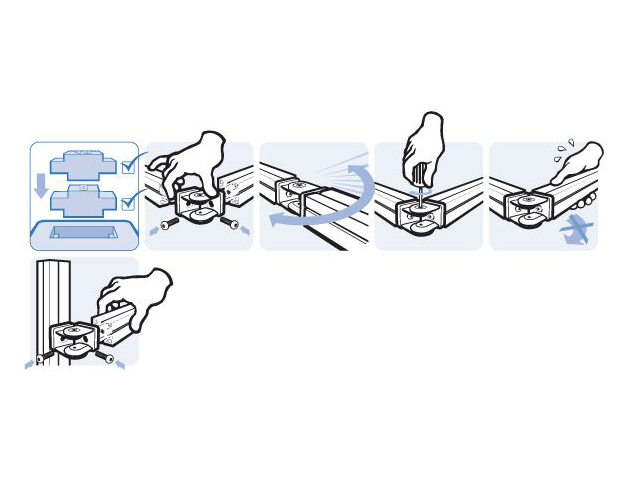

Easy Installation and Reconfiguration

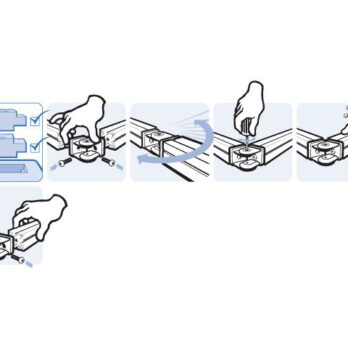

Ease of assembly is a major advantage of aluminium profile systems, and the Pivot Angle 40mm x 40mm – Series 8 supports this principle perfectly. Installation typically requires only standard hand tools, with no specialist equipment needed.
Once installed, the Pivot Angle 40mm x 40mm – Series 8 can be loosened, adjusted, and retightened as required. This makes it ideal for evolving projects where angles may need to be refined during setup or altered later as operational needs change.
Long-Term Durability and Reliability
Built for longevity, the Pivot Angle 40mm x 40mm – Series 8 is suitable for both light-duty and heavy-duty environments. Its durable construction ensures resistance to wear, vibration, and repeated adjustment cycles.
For businesses investing in modular aluminium profile systems, choosing a Pivot Angle 40mm x 40mm – Series 8 connector helps protect that investment by delivering dependable performance over the lifetime of the structure.
A Professional Finish for Modular Builds
Beyond its functional benefits, the Pivot Angle 40mm x 40mm – Series 8 also contributes to a clean and professional-looking build. Aluminium profile systems are often chosen for their modern appearance, and this pivot connector maintains that aesthetic by fitting neatly within the profile framework.
The result is a modular structure that not only performs well but also looks organised and engineered, making it suitable for customer-facing environments, workshops, and production facilities alike.
Why Choose This Pivot Angle Connector?
Selecting the right connector can make a significant difference to the performance and adaptability of your aluminium profile structure. The Pivot Angle 40mm x 40mm – Series 8 stands out due to its precise engineering, compatibility with Profile 8 systems, and ability to create adjustable joints without compromising strength.
For anyone building with Series 8 aluminium profiles, the Pivot Angle 40mm x 40mm – Series 8 is an essential component that enhances flexibility, simplifies installation, and supports long-term modular design.
Please make sure this is the correct series part to match the profile series you are purchasing or using. Thank you.
